AgentPay

Decentralized micropayment channels for autonomous AI agents over libp2p

Get Started View on GitHub

Agents discover each other via mDNS, negotiate service terms over libp2p streams, exchange Filecoin-style signed payment vouchers off-chain, and settle on Ethereum, Algorand, or Filecoin FEVM. Built for the Filecoin Agents ecosystem and the ARIA Scaling Trust programme.

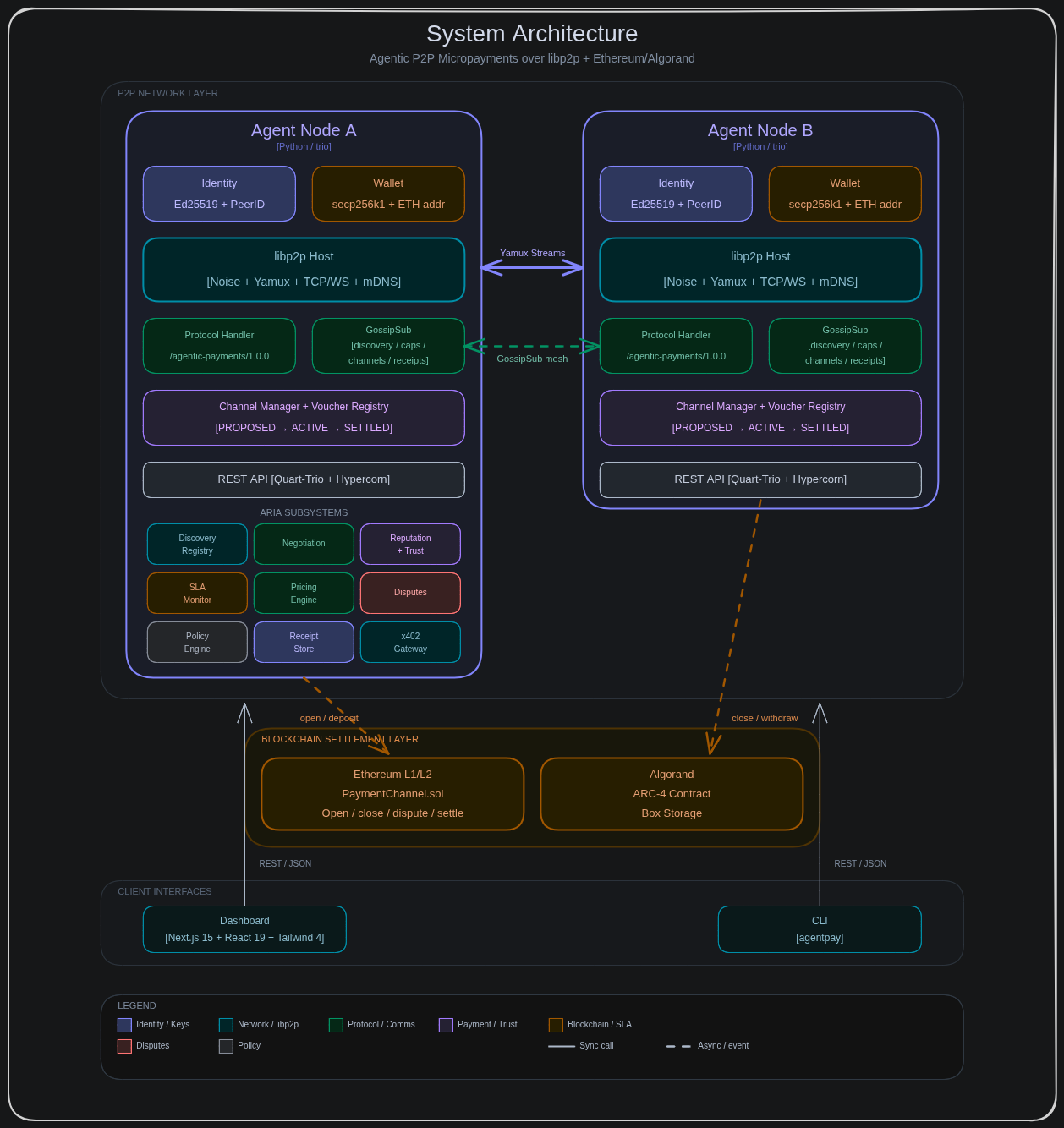

System Architecture

Architecture

AgentPay is structured as a modular agent runtime with six layers:

  • Networking — py-libp2p 0.6.0 with TCP/WebSocket transports, Noise encryption, Yamux multiplexing, mDNS discovery, and GossipSub pubsub
  • Wire Protocol — 13 message types over length-prefixed msgpack streams (/agentic-payments/1.0.0), covering payments, HTLCs, negotiations, and announcements
  • Payment Channels — Filecoin-style cumulative vouchers with ECDSA signatures and task correlation, HTLC multi-hop routing, one-shot x402 stateless payments, and a 6-state channel lifecycle
  • Settlement — Tri-chain: Ethereum (Solidity), Algorand (ARC-4 + box storage), and Filecoin FEVM — selectable at startup
  • Identity — ERC-8004 on-chain agent registration, EIP-191 PeerId-to-wallet cryptographic binding
  • Trust Layer — Reputation scoring, GossipSub peer scoring, SLA monitoring, dynamic pricing, dispute detection, wallet policies, and hash-chained signed receipt audit trails

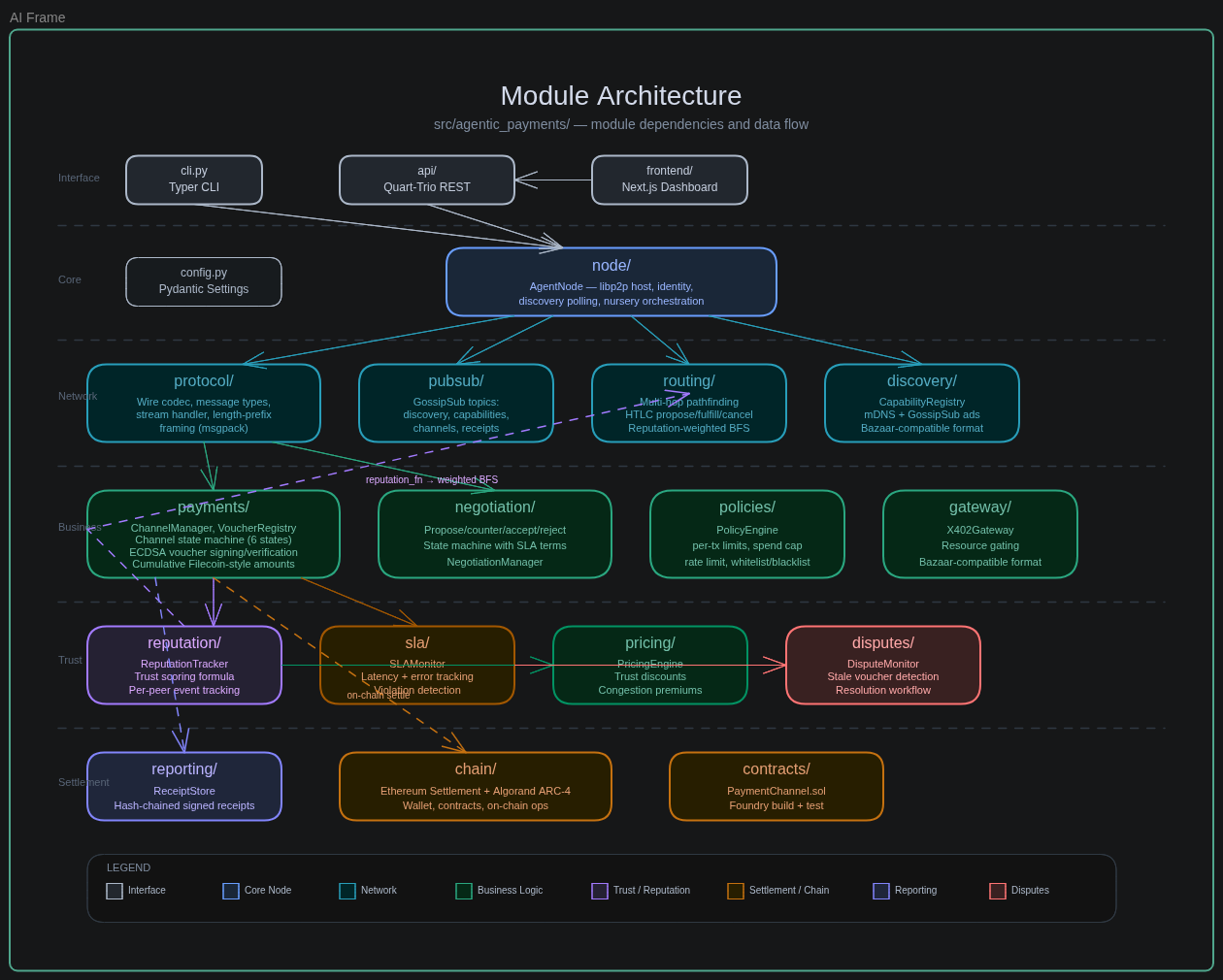

Module Architecture Module dependency map — interface, core, network, business, trust, and settlement layers

See Architecture for the full system design with 11 architecture diagrams.

Quick Start

Prerequisites

  • Python 3.12+ and uv (curl -LsSf https://astral.sh/uv/install.sh | sh)
  • Node.js 22+ (for the dashboard)
  • Docker (optional — PostgreSQL + Anvil for on-chain settlement)

Install & Run

# Install dependencies
uv sync --group dev

# Start agents + dashboard (recommended)
./scripts/dev.sh              # 2 agents + frontend at localhost:3000
./scripts/dev.sh --agents 3   # 3 agents

# Or start manually
uv run agentpay start --port 9000 --api-port 8080

Verify

curl http://127.0.0.1:8080/health       # {"status":"ok","version":"0.1.0"}
curl http://127.0.0.1:8080/identity     # peer_id, eth_address, listen addrs
curl http://127.0.0.1:8080/peers        # discovered peers

Open a Channel & Pay

# Open a payment channel (locks 1 ETH deposit)
curl -X POST http://127.0.0.1:8080/channels \
  -H "Content-Type: application/json" \
  -d '{"peer_id":"12D3KooW...","receiver":"0xAbC...","deposit":1000000000000000000}'

# Send micropayments (off-chain, sub-millisecond)
curl -X POST http://127.0.0.1:8080/pay \
  -H "Content-Type: application/json" \
  -d '{"channel_id":"abcdef01...","amount":100000000000000}'

Dashboard

The Next.js dashboard at localhost:3000 provides a real-time multi-agent network view.

Feature Description
Network Graph Interactive force-directed graph — click nodes to open channels, click edges to send payments. Trust-colored nodes (green/amber/red).
Trust Panels Discovery, negotiations, receipt chains, wallet policies — all in the left sidebar.
Simulation Batch payment rounds, topology control (mesh/ring/star), success rate tracking.
Actions Open channels, route multi-hop HTLC payments, propose service negotiations.
Monitoring SLA violations, dispute scanning, dynamic pricing quotes, live event feed.

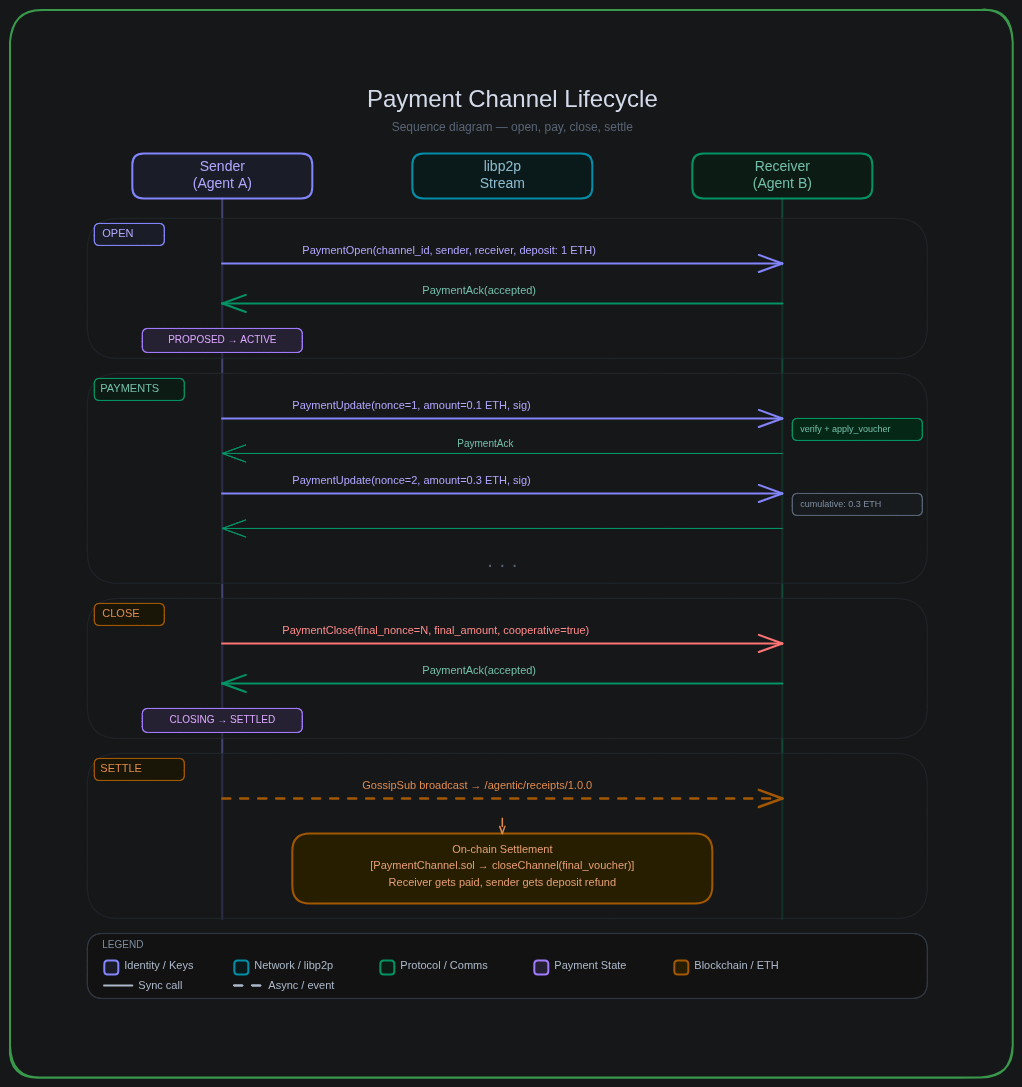

Payment Channel Lifecycle Payment channel lifecycle — open, pay, close, settle

CLI

agentpay start [--port 9000] [--api-port 8080] [--eth-rpc URL]   # Start agent node
agentpay identity generate                                         # Create Ed25519 keypair
agentpay channel open --peer <id> --deposit <wei>                  # Open payment channel
agentpay pay --channel <id> --amount <wei>                         # Send micropayment
agentpay negotiate propose --peer <id> --service compute           # Negotiate terms
agentpay reputation list                                           # View trust scores
agentpay dispute scan                                              # Detect stale vouchers
agentpay pricing quote --service inference                         # Dynamic price quote

Full CLI reference with all subcommands: CLI & API Reference

Development

make ci            # Run full CI pipeline locally
make test          # 680 tests
make lint          # ruff check
make fmt           # ruff format (auto-fix)
make typecheck     # mypy

Contributing

See Contributing for setup instructions, branch rules, and code quality requirements.
